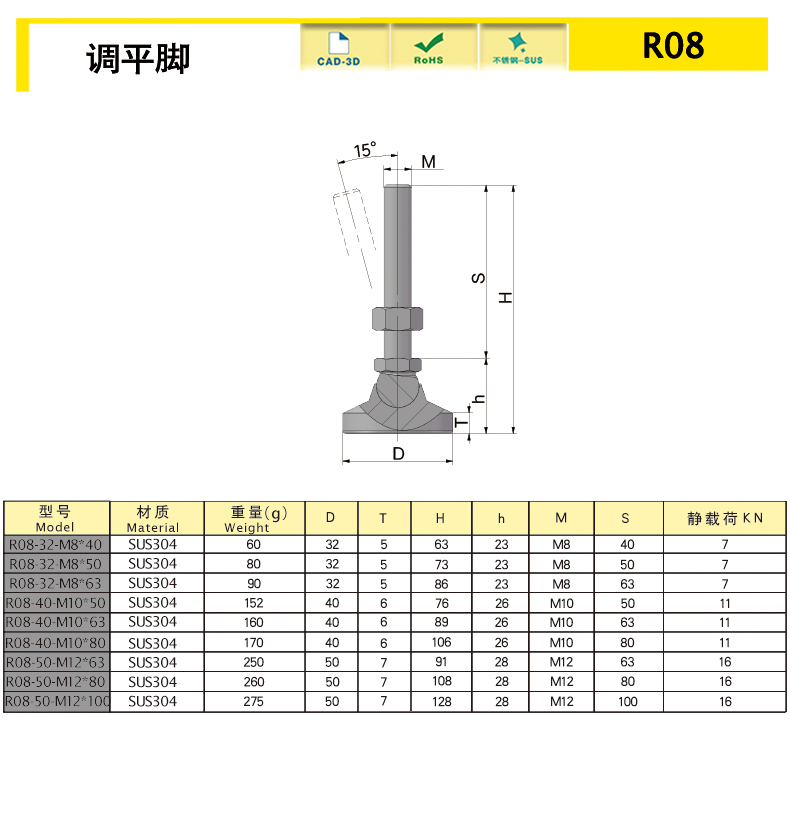

| model | material quality | Diameter D | M | S | H | h | Weight (g) | Static load (KN) | 3D |
| R08-32-M8-40 | sus304 | 32 | m8 | 40 | 63 | 23 | 1 | 7 | Download |
| R08-32-M8-50 | sus304 | 32 | m8 | 50 | 80 | 23 | 1 | 7 | Download |
| R08-32-M8-63 | sus304 | 32 | m8 | 63 | 86 | 23 | 1 | 7 | Download |
| R08-40-M10-50 | sus304 | 40 | m10 | 50 | 76 | 26 | 1 | 11 | Download |
| R08-40-M10-63 | sus304 | 40 | m10 | 63 | 89 | 26 | 1 | 11 | Download |
| R08-40-M10-80 | sus304 | 40 | m10 | 80 | 106 | 26 | 1 | 11 | Download |
| R08-50-M12-63 | sus304 | 50 | m12 | 63 | 91 | 28 | 1 | 16 | Download |
| R08-50-M12-80 | sus304 | 50 | m12 | 80 | 108 | 28 | 1 | 17 | Download |
| R08-50-M12-100 | sus304 | 50 | m12 | 100 | 128 | 28 | 1 | 16 | Download |
Ultimate smooth screw, quick installation
The screw provides 15 degree universal adjustment, relieving angle tolerance and improving the machine's balance and stability
