| model | material quality | Diameter D | M | S | K | H | h | Weight (g) | Static load (KN) | 3D |
| R26-100-M16-100-Zn | s45c | 100 | m16 | 100 | 12.5 | 143 | 20 | 10 | 12.7 | Download |
| R26-100-M16-120-Zn | s45c | 100 | m16 | 120 | 12.5 | 163 | 20 | 10 | 12.7 | Download |
| R26-100-M16-150-Zn | s45c | 100 | m16 | 150 | 12.5 | 193 | 20 | 10 | 12.7 | Download |
| R26-100-M16-200-Zn | s45c | 100 | m16 | 200 | 12.5 | 243 | 20 | 10 | 12.7 | Download |
| R26-100-M20-100-Zn | s45c | 100 | m20 | 100 | 12.5 | 143 | 20 | 10 | 17.6 | Download |
| R26-100-M20-120-Zn | s45c | 100 | m20 | 120 | 12.5 | 163 | 20 | 10 | 17.6 | Download |
| R26-100-M20-150-Zn | s45c | 100 | m20 | 150 | 12.5 | 193 | 20 | 10 | 17.6 | Download |
| R26-100-M20-200-Zn | s45c | 100 | m20 | 200 | 12.5 | 243 | 20 | 10 | 17.6 | Download |
| R26-100-M24-100-Zn | s45c | 100 | m24 | 100 | 12.5 | 143 | 20 | 10 | 22.5 | Download |
| R26-100-M24-120-Zn | s45c | 100 | m24 | 120 | 12.5 | 163 | 20 | 10 | 22.5 | Download |
| R26-100-M24-150-Zn | s45c | 100 | m24 | 150 | 12.5 | 193 | 20 | 10 | 22.5 | Download |
| R26-100-M24-200-Zn | s45c | 100 | m24 | 200 | 12.5 | 243 | 20 | 10 | 22.5 | Download |

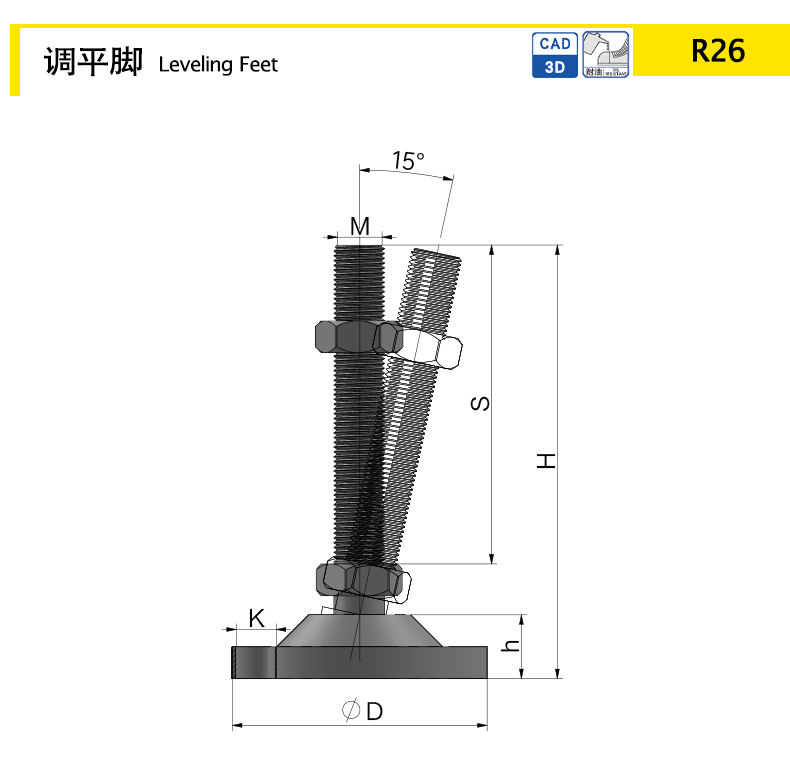

Overloaded universal fixed foot cup
All metal structure
Zn: Galvanized
Cr: Chrome plating
BK: Electrophoretic Black
Disk seat and screw: Steel S45C/SUS304
The disc holder is equipped with fixed holes for easy adjustment and locking
The screw provides a 15 degree universal adjustment to eliminate angle tolerances and improve the stability of the machine equipment
