| model | material quality | Diameter D | M | S | H | h | Weight (g) | Static load (KN) | 3D |
| R27-80-M16-100-Zn | s45c | 80 | m16 | 100 | 140 | 20 | 10 | 9.8 | Download |
| R27-80-M16-120-Zn | s45c | 80 | m16 | 120 | 160 | 20 | 10 | 9.8 | Download |
| R27-80-M16-150-Zn | s45c | 80 | m16 | 150 | 190 | 20 | 10 | 9.8 | Download |
| R27-80-M16-200-Zn | s45c | 80 | m16 | 200 | 240 | 20 | 10 | 9.8 | Download |
| R27-80-M20-100-Zn | s45c | 80 | m20 | 100 | 141 | 20 | 10 | 14.6 | Download |
| R27-80-M20-120-Zn | s45c | 80 | m20 | 120 | 161 | 20 | 10 | 14.6 | Download |
| R27-80-M20-150-Zn | s45c | 80 | m20 | 150 | 191 | 20 | 10 | 14.6 | Download |
| R27-80-M20-200-Zn | s45c | 80 | m20 | 200 | 241 | 20 | 10 | 14.6 | Download |
| R27-80-M24-100-Zn | s45c | 80 | m24 | 100 | 141 | 20 | 10 | 19.5 | Download |
| R27-80-M24-120-Zn | s45c | 80 | m24 | 120 | 161 | 20 | 10 | 19.5 | Download |
| R27-80-M24-150-Zn | s45c | 80 | m24 | 150 | 191 | 20 | 10 | 19.5 | Download |
| R27-80-M24-200-Zn | s45c | 80 | m24 | 200 | 241 | 20 | 10 | 19.5 | Download |

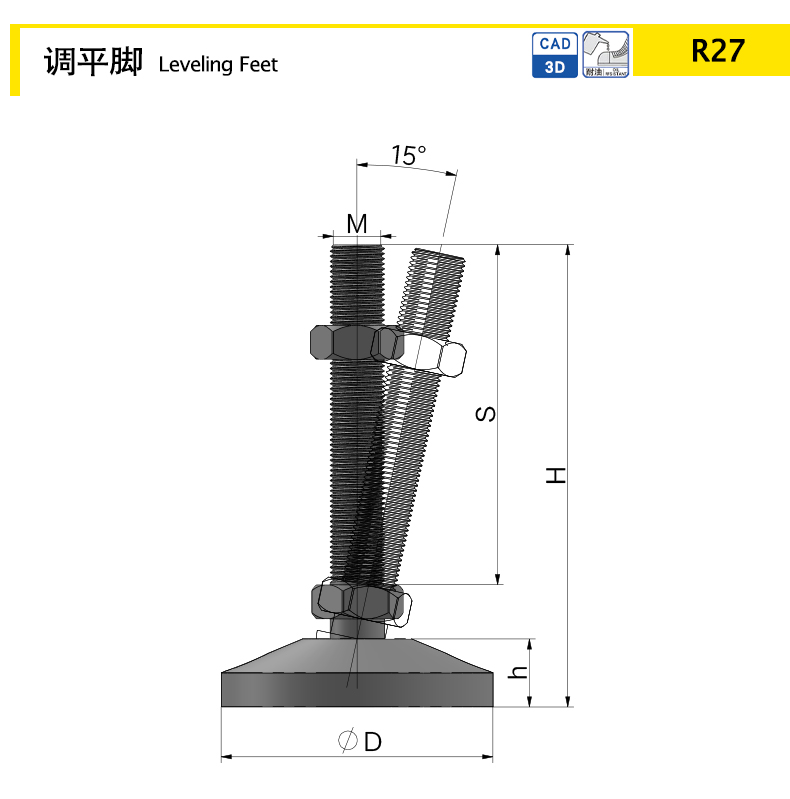

Heavy duty universal foot cup
All metal structure
Zn: Galvanized
Cr: Chrome plating
BK: Electrophoretic Black
Disk seat and screw: Steel S45C/SUS304
The screw provides a 15 degree universal adjustment to eliminate angle tolerances and improve the stability of the machine equipment
