| model | material quality | Diameter D | M | S | H | h | Weight (g) | Static load (KN) | 3D |
| R28-40-M8-60-Ni | s45c | 40 | m8 | 60 | 90 | 30 | 10 | 1.7 | Download |
| R28-40-M8-80-Ni | s45c | 40 | m8 | 80 | 110 | 30 | 10 | 1.7 | Download |
| R28-40-M8-100-Ni | s45c | 40 | m8 | 100 | 130 | 30 | 10 | 1.7 | Download |
| R28-40-M10-60-Ni | s45c | 40 | m10 | 60 | 90 | 30 | 10 | 1.7 | Download |
| R28-40-M10-80-Ni | s45c | 40 | m10 | 80 | 110 | 30 | 10 | 1.7 | Download |
| R28-40-M10-100-Ni | s45c | 40 | m10 | 100 | 130 | 30 | 10 | 1.7 | Download |
| R28-50-M8-60-Ni | s45c | 50 | m8 | 60 | 93 | 33 | 10 | 1.8 | Download |
| R28-50-M8-80-Ni | s45c | 50 | m8 | 80 | 113 | 33 | 10 | 1.8 | Download |
| R28-50-M8-100-Ni | s45c | 50 | m8 | 100 | 133 | 33 | 10 | 1.8 | Download |
| R28-50-M10-60-Ni | s45c | 50 | m10 | 60 | 93 | 33 | 10 | 1.8 | Download |
| R28-50-M10-80-Ni | s45c | 50 | m10 | 80 | 113 | 33 | 10 | 1.8 | Download |
| R28-50-M10-100-Ni | s45c | 50 | m10 | 100 | 133 | 33 | 10 | 1.8 | Download |

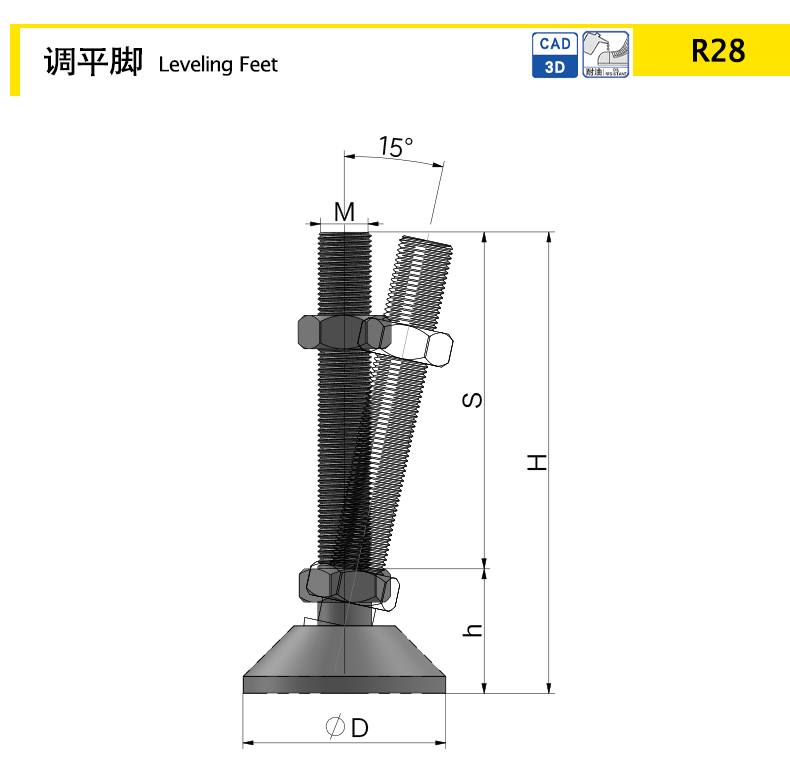

Lightweight universal foot cup
Metal screw+full PP universal joint
Ni: Nickel plating
Screw: Steel S45C/SUS304
Disk seat: made of PP material, shockproof, rust proof, anti slip, alkali resistant, wear-resistant, and oil resistant.
The screw provides a 15 degree universal adjustment to eliminate angle tolerances and improve the stability of the machine equipment
