| model | material quality | Diameter D | M | S | H | h | Weight (g) | Static load (KN) | 3D |
| R29-100-M16-80-Ni | s45c | 100 | m16 | 80 | 123 | 43 | 10 | 5.9 | Download |
| R29-100-M16-100-Ni | s45c | 100 | m16 | 100 | 143 | 43 | 10 | 5.9 | Download |
| R29-100-M16-120-Ni | s45c | 100 | m16 | 120 | 163 | 43 | 10 | 5.9 | Download |
| R29-100-M16-150-Ni | s45c | 100 | m16 | 150 | 193 | 43 | 10 | 5.9 | Download |
| R29-100-M16-200-Ni | s45c | 100 | m16 | 200 | 243 | 43 | 10 | 5.9 | Download |
| R29-100-M20-100-Ni | s45c | 100 | m20 | 100 | 144 | 44 | 10 | 6.3 | Download |
| R29-100-M20-120-Ni | s45c | 100 | m20 | 120 | 164 | 44 | 10 | 6.3 | Download |
| R29-100-M20-150-Ni | s45c | 100 | m20 | 150 | 194 | 44 | 10 | 6.3 | Download |
| R29-100-M20-200-Ni | s45c | 100 | m20 | 200 | 244 | 44 | 10 | 6.3 | Download |
| R29-100-M24-100-Ni | s45c | 100 | m24 | 100 | 144 | 44 | 10 | 6.8 | Download |
| R29-100-M24-120-Ni | s45c | 100 | m24 | 120 | 164 | 44 | 10 | 6.8 | Download |
| R29-100-M24-150-Ni | s45c | 100 | m24 | 150 | 194 | 44 | 10 | 6.8 | Download |

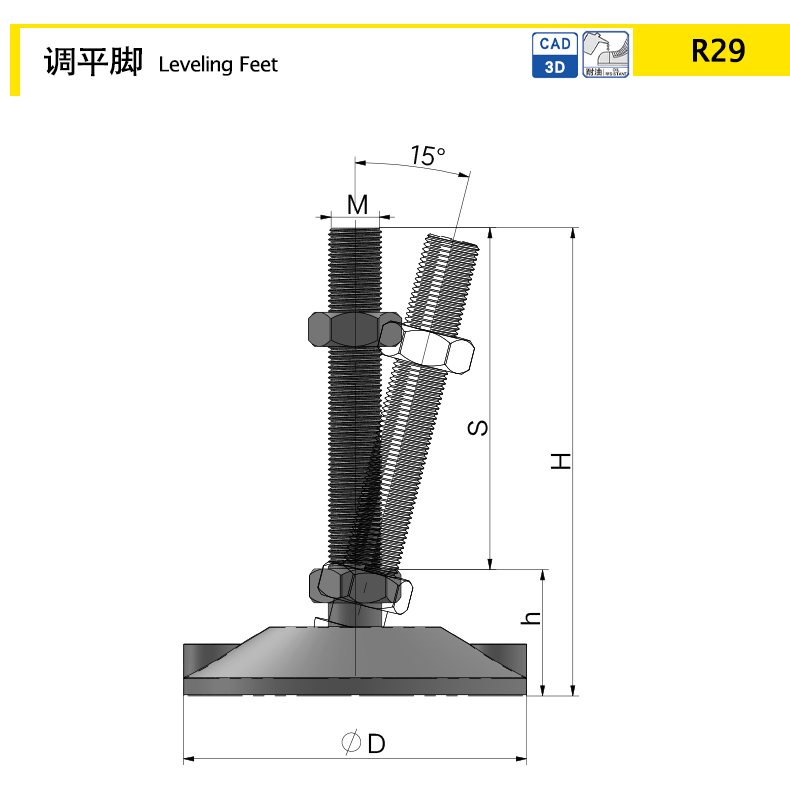

Medium load fixed universal foot cup
Metal screw+PP base
Ni: Nickel plating
Screw: Steel S45C/SUS304
Disk seat: made of PP material, with a rubber anti slip bottom at the bottom, which is shockproof, rust proof, anti slip, alkali resistant, wear-resistant, and oil resistant.
The disc holder has fixed holes for easy adjustment and locking
The screw provides a 15 degree universal adjustment to eliminate angle tolerances and improve the stability of the machine equipment
