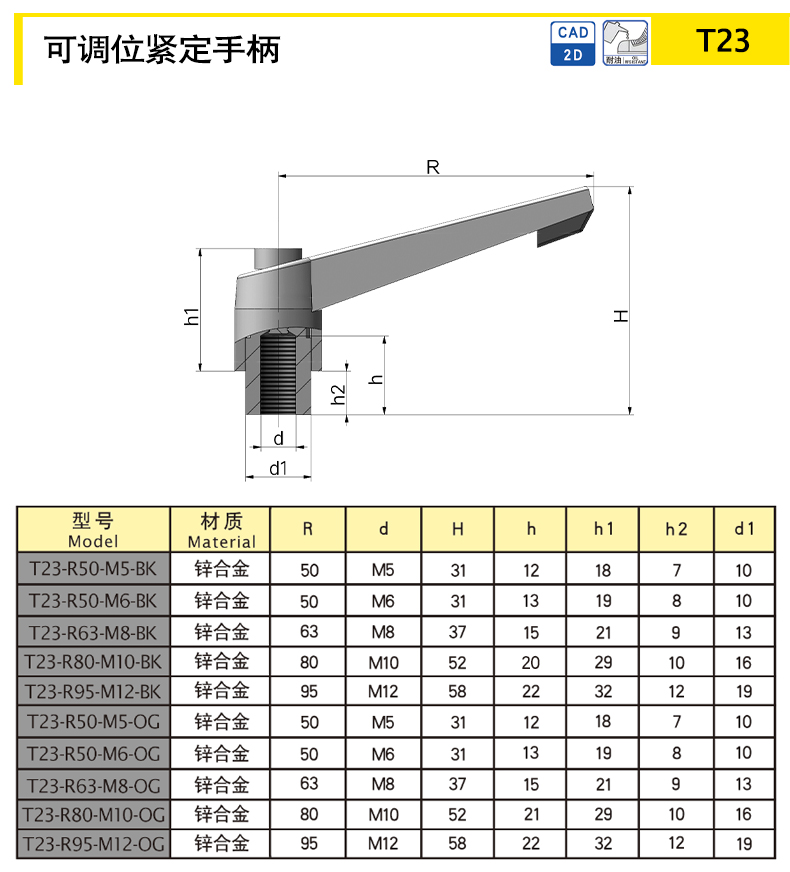

| model | Weight (g) | material quality | H | R | h | d | h1 | h2 | I | 3D |
| T23-R50-M5-BK | 30.01 | zinc alloy | 31 | 50 | 12 | m5 | 18 | 10 | 7 | Download |
| T23-R50-M6-BK | 28.01 | zinc alloy | 31 | 50 | 13 | m6 | 19 | 10 | 8 | Download |
| T23-R63-M8-BK | 55.61 | zinc alloy | 37 | 63 | 15 | m8 | 21 | 13 | 9 | Download |
| T23-R80-M10-BK | 86.51 | zinc alloy | 52 | 80 | 21 | m10 | 29 | 16 | 10 | Download |
| T23-R95-M12-BK | 1 | zinc alloy | 58 | 95 | 22 | m12 | 32 | 19 | 12 | Download |
| T23-R50-M5-OG | 1 | zinc alloy | 31 | 50 | 12 | m5 | 18 | 10 | 7 | Download |
| T23-R50-M6-OG | 1 | zinc alloy | 31 | 50 | 13 | m6 | 19 | 10 | 8 | Download |
| T23-R63-M8-OG | 1 | zinc alloy | 37 | 63 | 15 | m8 | 21 | 13 | 9 | Download |
| T23-R80-M10-OG | 1 | zinc alloy | 52 | 80 | 21 | m10 | 29 | 16 | 10 | Download |
| T23-R95-M12-OG | 1 | zinc alloy | 58 | 95 | 22 | m12 | 32 | 19 | 12 | Download |
Compared to other concentric handles, it has greater torque and more angles, making it convenient for operators to use. It is suitable for situations where there is a lack of space or special requirements for the position of the handle
Adjustable locking handle
