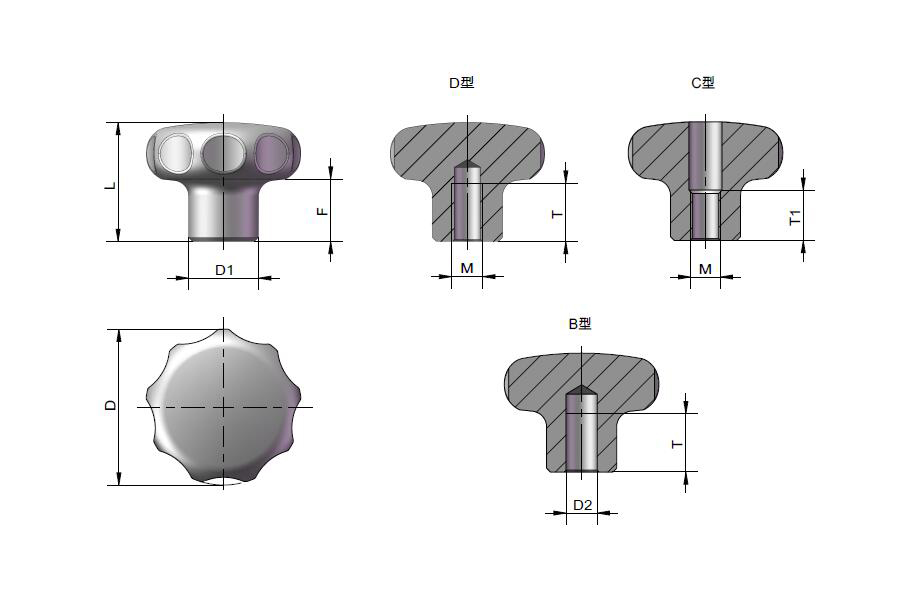

| model | Diameter D | D1 | M | T | F | characteristic | Weight (g) | material quality | 3D |
| T50AL-D32-M6-D | 32 | 14.4 | m6 | 15 | 12.5 | nut | 23.21 | aluminum alloy | Download |
| T50AL-D40-M8-D | 40 | 18 | m8 | 15 | 16 | nut | 45.01 | aluminum alloy | Download |
| T50AL-D50-M10-D | 50 | 22.5 | m10 | 20 | 20 | nut | 1 | aluminum alloy | Download |
| T50AL-D60-M12-D | 60 | 27 | m12 | 24 | 24 | nut | 1 | aluminum alloy | Download |
| T50B-D32-M6-D | 32 | 14.4 | m6 | 15 | 12.5 | nut | 1 | sus304 | Download |
| T50B-D40-M8-D | 40 | 18 | m8 | 15 | 16 | nut | 138.01 | sus304 | Download |
| T50B-D50-M10-D | 50 | 22.5 | m10 | 20 | 20 | nut | 1 | sus304 | Download |
| T50B-D60-M12-D | 60 | 27 | m12 | 24 | 24 | nut | 1 | sus304 | Download |
T50: Aluminum alloy, matte frosted finish
T50B: Stainless steel,Matte matte finish
Assembly method:
Type B: With standard H7 hinge blind hole
Type C: threaded through-hole
D-type: threaded blind hole
Stainless steel has good corrosion resistance and can be applied in special sanitary, climatic, and environmental conditions, or in environments where the use of corrosion-resistant materials is mandatory by law
