| model | Diameter D | D1 | M | F | Height H | B | characteristic | L1 | Weight (g) | material quality | 3D |
| T73-50-M6-20 | 50 | 14.5 | m6 | 6 | 20 | 8 | screw | 22 | 1 | polyamide (pa) | Download |
| T73-50-M6-30 | 50 | 14.5 | m6 | 6 | 30 | 8 | screw | 22 | 1 | polyamide (pa) | Download |
| T73-50-M6-40 | 50 | 14.5 | m6 | 6 | 40 | 11 | screw | 22 | 1 | polyamide (pa) | Download |
| T73-66-M8-20 | 66.5 | 19 | m8 | 8 | 20 | 11 | screw | 29 | 1 | polyamide (pa) | Download |
| T73-66-M8-30 | 66.5 | 19 | m8 | 8 | 30 | 11 | screw | 29 | 1 | polyamide (pa) | Download |
| T73-66-M8-40 | 66.5 | 19 | m8 | 8 | 40 | 11 | screw | 29 | 1 | polyamide (pa) | Download |
| T73-66-M10-20 | 66.5 | 19 | m10 | 8 | 20 | 11 | screw | 29 | 1 | polyamide (pa) | Download |
| T73-66-M10-30 | 66.5 | 19 | m10 | 8 | 30 | 11 | screw | 29 | 1 | polyamide (pa) | Download |
| T73-66-M10-40 | 66.5 | 19 | m10 | 8 | 40 | 12 | screw | 29 | 1 | polyamide (pa) | Download |
Black, matte finish; Galvanized steel screw
The butterfly shaped part of the knob is slightly concave, which helps to grip and position with fingers; Utilize fastening

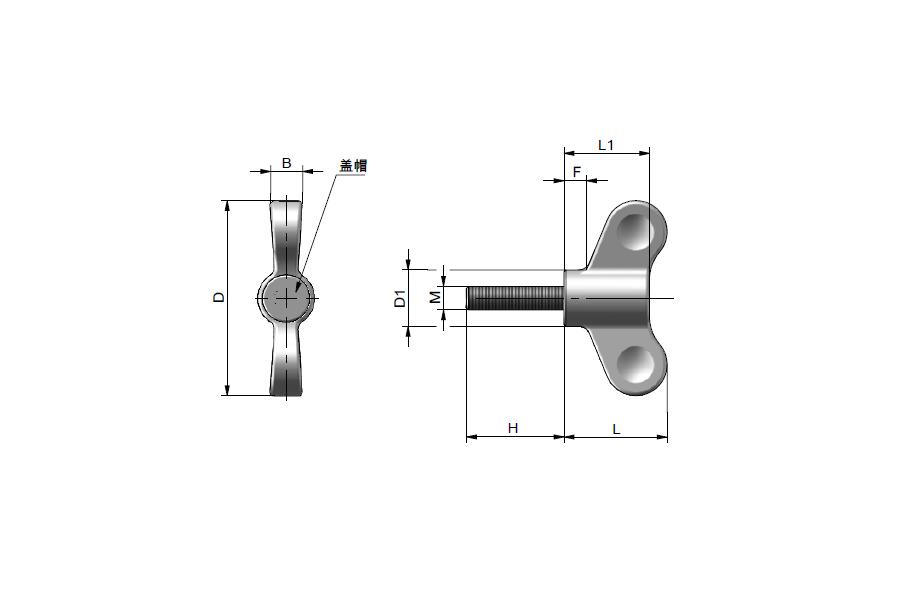

Double wing bolt knob
