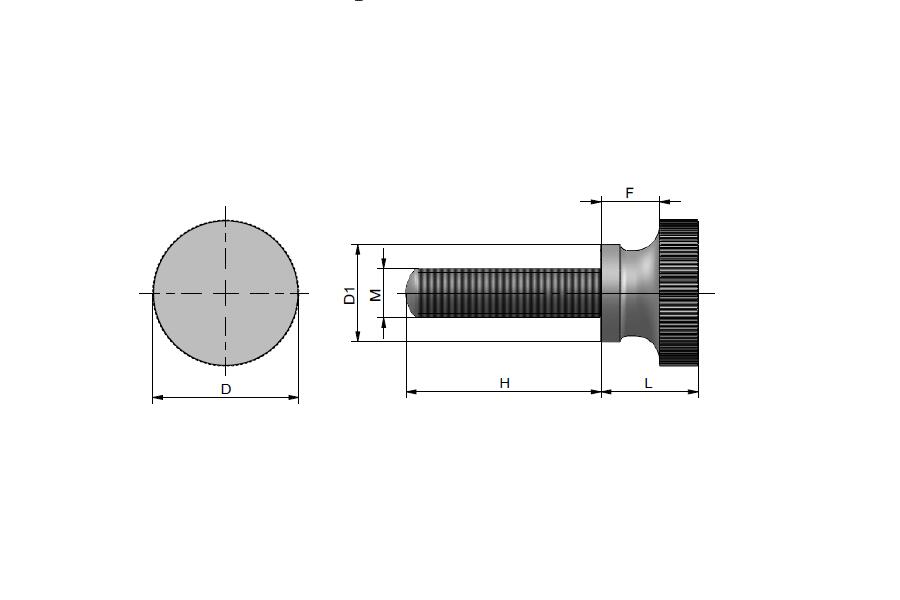

| model | Diameter D | Length L | D1 | M | F | Height H | characteristic | Weight (g) | material quality | H | 3D |
| T92B-D30-M10-70 | 30 | 20 | 20 | m10 | 12 | 70 | screw | 1 | sus304 | 70 | Download |
| T92B-D30-M10-40 | 30 | 20 | 20 | m10 | 12 | 40 | screw | 1 | sus304 | 40 | Download |
| T92B-D30-M10-30 | 30 | 20 | 20 | m10 | 12 | 30 | screw | 1 | sus304 | 30 | Download |
| T92B-D30-M10-25 | 30 | 20 | 20 | m10 | 12 | 25 | screw | 83.81 | sus304 | 25 | Download |
| T92B-D24-M8-50 | 24 | 16 | 16 | m8 | 10 | 50 | screw | 1 | sus304 | 50 | Download |
| T92B-D24-M8-45 | 24 | 16 | 16 | m8 | 10 | 45 | screw | 10.81 | sus304 | 45 | Download |
| T92B-D24-M8-40 | 24 | 16 | 16 | m8 | 10 | 40 | screw | 10.81 | sus304 | 40 | Download |
| T92B-D24-M8-35 | 24 | 16 | 16 | m8 | 10 | 35 | screw | 10.81 | sus304 | 35 | Download |
| T92B-D24-M8-30 | 24 | 16 | 16 | m8 | 10 | 30 | screw | 44.01 | sus304 | 30 | Download |
| T92B-D24-M8-25 | 24 | 16 | 16 | m8 | 10 | 25 | screw | 1 | sus304 | 25 | Download |
| T92B-D24-M8-20 | 24 | 16 | 16 | m8 | 10 | 20 | screw | 41.01 | sus304 | 20 | Download |
| T92B-D24-M8-16 | 24 | 16 | 16 | m8 | 10 | 16 | screw | 10.81 | sus304 | 16 | Download |
The end is embossed and easy to tighten. The shape of the ball end face of the screw can also be used as a fastening screw
