| model | function | Length (mm) | material quality | Weight (g) | Locking force (N) | Ultimate load (N) | 3D |
| A118B-1 | damping,self lock | 108 | sus304 | 89.01 | 100/200/350 | 2800 | Download |
| A118B-2 | damping,self lock | 143.5 | sus304 | 174.81 | 250/340/400 | 3500 | Download |
| A118B-3 | damping,self lock | 108.4 | sus304 | 190.12 | 100/200/350 | 2800 | Download |
| A118B-4 | damping,self lock | 143.5 | sus304 | 190.12 | 250/340/400 | 3500 | Download |
With side holes, can be equipped with locks or lead seals to prevent loosening
The self-locking device can achieve self-locking function, with reliable safety, and the buckle will not loosen due to vibration
Compression springs have elastic preloading and shock absorption functions
Selected pure 304 stainless steel material
Bold solid rivets: Rotation is soft and flexible, high-precision shaft hole coordination, Taiwan riveting production line to ensure flexible product rotation.
Compression spring with elastic preload and shock absorption

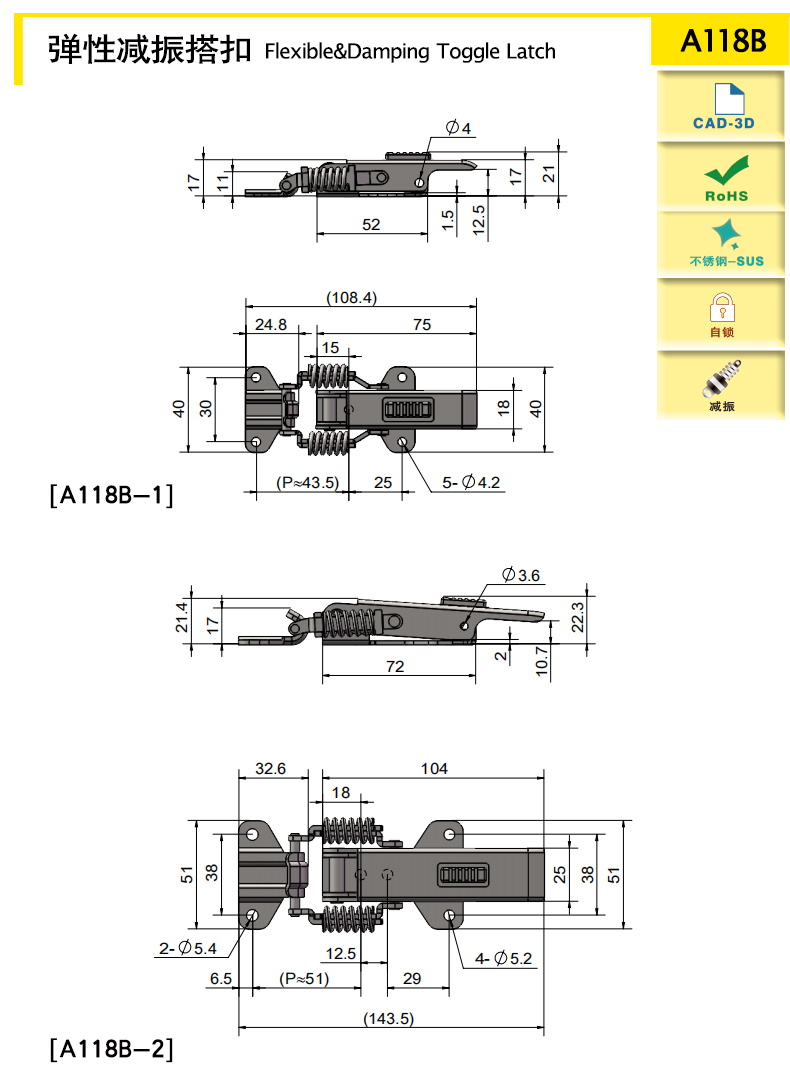

Elastic damping toggle latch
