TANJA A161 Concealed & Safety Toggle Latch

Banner
TANJA A161 Concealed & Safety Toggle Latch
TANJA A161 Concealed & Safety Toggle Latch
TANJA A161 Concealed & Safety Toggle Latch
TANJA A161 Concealed & Safety Toggle Latch
TANJA A161 Concealed & Safety Toggle Latch
TANJA A161 Concealed & Safety Toggle Latch
TANJA A161 Concealed & Safety Toggle Latch
TANJA A161 Concealed & Safety Toggle Latch
TANJA A161 Concealed & Safety Toggle Latch
TANJA A161 Concealed & Safety Toggle Latch

TANJA A161 Concealed & Safety Toggle Latch

Suitable for smaller spaces, matching specific shapes, enhancing quality Equipped with self-locking function, ensuring reliable safety. Buckles will not loosen due to vibration.

Mechanical industry, medical equipment and devices, medical diagnostic equipment, food packaging machinery, electrical machinery and equipment manufacturing, computer, communication and other electronic equipment manufacturing, construction industry, building decoration and facilities, advertising facilities

PRODUCT DETAILS

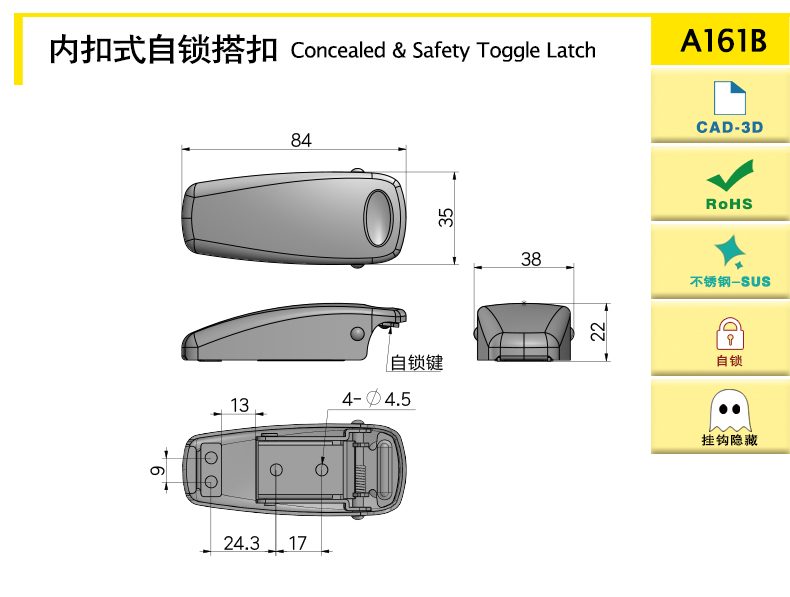

Product dimensions and attributes

model function Length (mm) material quality Weight (g) Locking force (N) Ultimate load (N) 3D
A161B internal toggle latch, self lock 84 sus304 95.61 80 1700 Download
A161B-BK internal toggle latch type, self-locking 84 sus304 97.71 80 1700 Download

characteristic

The product is made of pure Taiyuan Iron and Steel Group 304 stainless steel.

A test report can be provided for each batch.

SUS304 - Surface polishing.

Compared with traditional buckles, it has a more concise and smooth appearance. It can effectively prevent collision damage or misoperation caused by the protrusion of external components. This design makes the buckle fit more closely with the surface of the connected object, which is not only aesthetically pleasing, but also can reduce the interference with other items during use.

The surface coating has a hardness of 6H, and the adhesion can reach Grade 5A.The coating thickness is 3-8 micrometers. It is oil-free and environmentally friendly, conforming to the EU ROHS standard. In the salt spray test, the minimum duration is 120 hours, and the maximum can reach 1000 hours.
