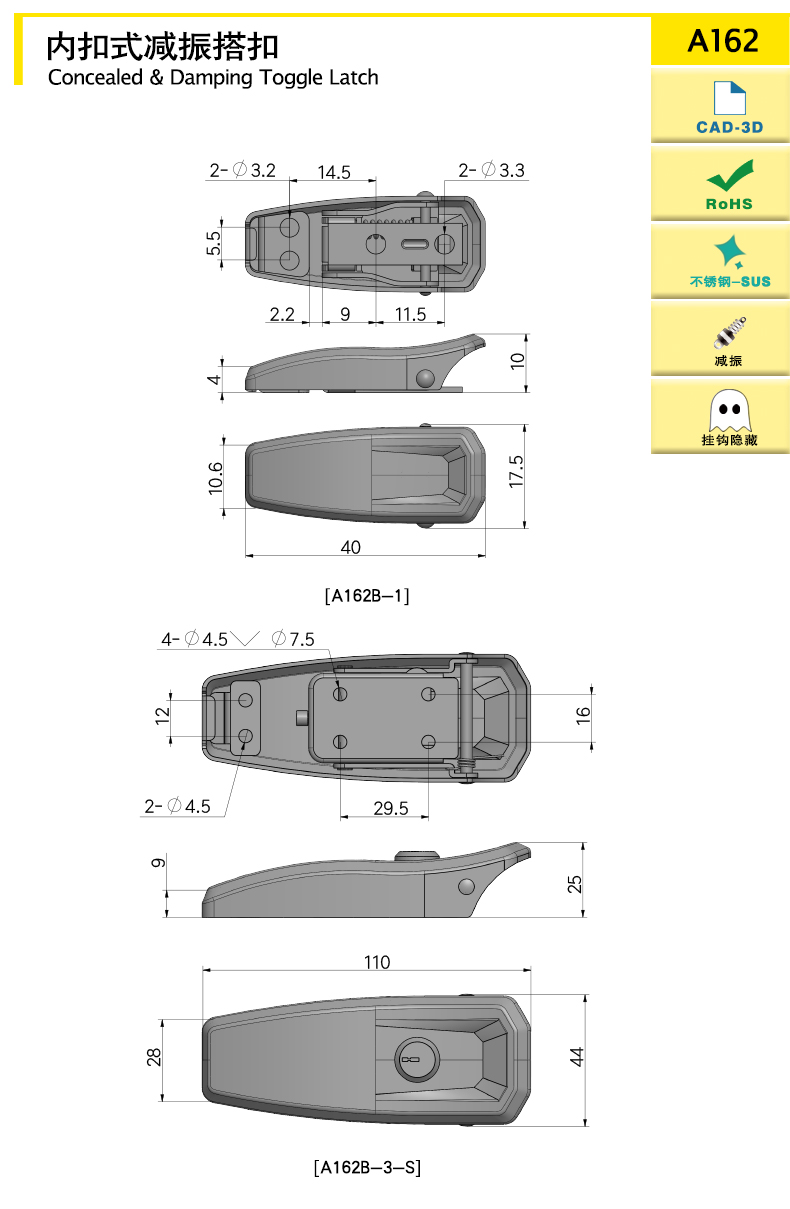

| model | function | Length (mm) | material quality | Weight (g) | Locking force (N) | Ultimate load (N) | 3D |
| A162B-1 | internal toggle latch type, vibration reduction | 40 | sus304 | 12.71 | 100 | 800 | Download |
| A162B-1-BK | internal toggle latch type, vibration reduction | 40 | sus304 | 13.8 | 100 | 800 | Download |
| A162B-3-S | internal toggle latch type, adjustable, with lock | 110 | sus304 | / | 400 | 4000 | Download |
| A162B-3 | internal toggle latch type, adjustable | 110 | sus304 | 148.31 | 400 | 4000 | Download |
The back side reveals the base contour of the buckle and the distribution of fixing holes, which are used to secure it to the equipment surface during installation.
The spring is built into the buckle body without exposure, achieving vibration-damping function.
Internal snap hook, the snap fastener has strong overall performance and a compact structure. The lower eccentric mechanism can achieve a secure locking of deviation from the plane. It has an adjustable function. The screw can be adjusted to change the installation distance and locking force.
Using high-quality thickened SUS304/SPCC material and adopting integrated molding design, the structural strength is higher and the service life is longer
Inner toggle latch elastic toggle latch
