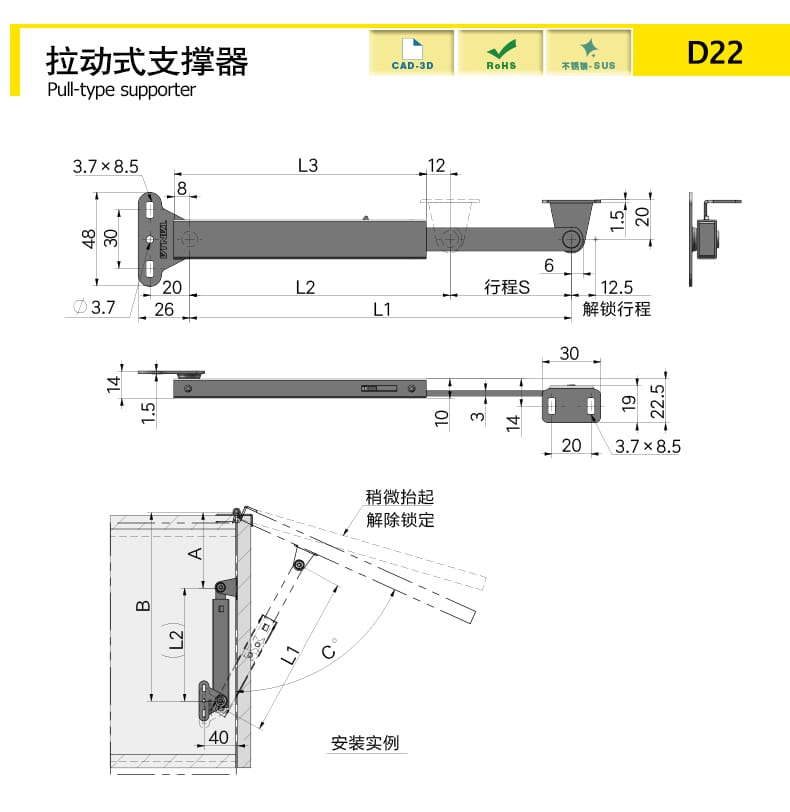

、 The door can be held in the open position. To release the hold, simply lift the door slightly upwards while it is open. 2、 Determine the appropriate mounting bracket position according to the door height and opening angle. Ensure that the dimension (L2) in the actual installation is greater than the L2 dimension shown in the figure below. 3、 A corresponding stroke allowance shall be reserved based on the different installation locations and application scenarios. 4、Load capacity: 15kgf per piece
Mechanical industry, petrochemical machinery, basic machinery manufacturing, electrical machinery and equipment manufacturing, engineering machinery, packaging and box body
