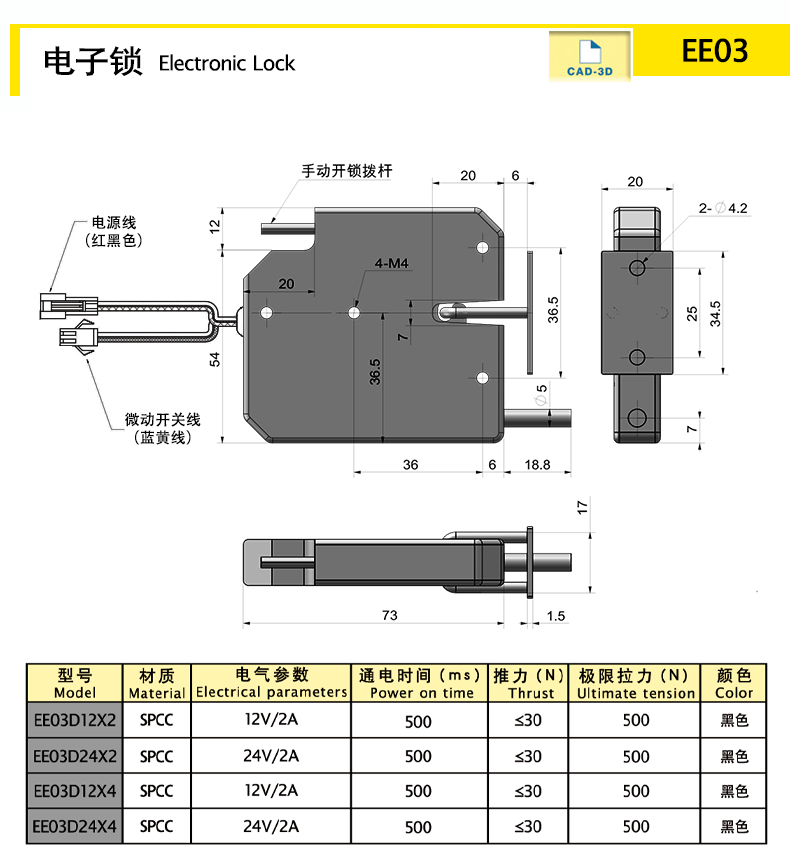

| model | function | material quality | colour | With key | surface treatment | Weight (g) | 3D |
| EE03D12X2 | electronic lock | spcc | black | none | electrophoresis | 186.31 | Download |
| EE03D24X2 | electronic lock | spcc | black | none | electrophoresis | 184.01 | Download |
| EE03D12X4 | electronic lock | spcc | black | none | electrophoresis | 188.5 | Download |
| EE03D24X4 | electronic lock | spcc | black | none | electrophoresis | 186.01 | Download |
Working mode: Independent (i.e. lock upon power outage and close the door, and trigger unlock upon power on)
Unlock detection: X2 dual wire unidirectional, X4 four wire feedback (unlocking position detection)
Mechanical life: greater than 500000 times under design load conditions
Electromagnet lifespan: Over 1 million times under rated working conditions
Self elastic design: Adjustable elasticity, suitable for doors weighing 0.5~4Kg to self bounce
Surface treatment: Electroplated electrophoretic paint (neutral smoke test for more than 500 hours)
Safety: The locking hook can withstand a tensile force of 150Kg without significant deformation; Has shockproof and anti prying performance
Environmental temperature: This product is suitable for environments with high temperature+60 degrees and low temperature -40 degrees
Installation: The product has a small volume, is easy to install, and there is no distinction between left and right, positive or negative; And reserve a mechanical emergency unlocking position
Using new technological materials such as memory metal titanium wire as the traction cable, utilizing its thermal shrinkage and cold expansion characteristics to achieve unlocking purposes
Built in microswitch output contact conduction feedback signal, lock switch closed, unlock switch disconnected
When the cabinet door is subjected to a tensile force of 50KG after being locked, there will be no opening or damage to the titanium wire lock. When subjected to knocking and vibration, the titanium wire lock will not open
Material: SPCC
Working mode: Independent (i.e. lock upon power outage and close the door, and trigger unlock upon power on)
Unlock detection: X2 dual wire unidirectional, X4 four wire feedback (unlocking position detection)
Mechanical life: greater than 500000 times under design load conditions
Electromagnet lifespan: Over 1 million times under rated working conditions
Self elastic design: Adjustable elasticity, suitable for doors weighing 0.5~4Kg to self bounce
Surface treatment: Electroplated electrophoretic paint (neutral smoke test for more than 500 hours)
Safety: The locking hook can withstand a tensile force of 150Kg without significant deformation; Has shockproof and anti prying performance
Environmental temperature: This product is suitable for environments with high temperature+60 degrees and low temperature -40 degrees
Installation: The product has a small volume, is easy to install, and there is no distinction between left and right, positive or negative; And reserve a mechanical emergency unlocking position
Using new technological materials such as memory metal titanium wire as the traction cable, utilizing its thermal shrinkage and cold expansion characteristics to achieve unlocking purposes
Built in microswitch output contact conduction feedback signal, lock switch closed, unlock switch disconnected
When the cabinet door is subjected to a tensile force of 50KG after being locked, there will be no opening or damage to the titanium wire lock. When subjected to knocking and vibration, the titanium wire lock will not open
Working mode: Independent (i.e. lock upon power outage and close the door, and trigger unlock upon power on) Mechanical life: greater than 500000 times under design load conditions Electromagnet lifespan: Over 1 million times under rated working conditions Unlock detection: built-in unlock position detection Surface treatment: Electroplated electrophoretic paint (neutral smoke test for more than 500 hours) Safety: The locking hook can withstand a tensile force of 150Kg without significant deformation; Has shockproof and anti prying performance Environmental temperature: This product is suitable for environments with high temperature+60 degrees and low temperature -40 degrees Installation: The product has a small volume, is easy to install, and there is no distinction between left and right, positive or negative; And reserve a mechanical emergency unlocking position Using new technological materials such as memory metal titanium wire as the traction cable, utilizing its thermal shrinkage and cold expansion characteristics to achieve unlocking purposes Built in microswitch output contact conduction feedback signal, lock switch closed, unlock switch disconnected When the cabinet door is subjected to a tensile force of 50KG after being locked, there will be no opening or damage to the titanium wire lock. When subjected to knocking and vibration, the titanium wire lock will not open
