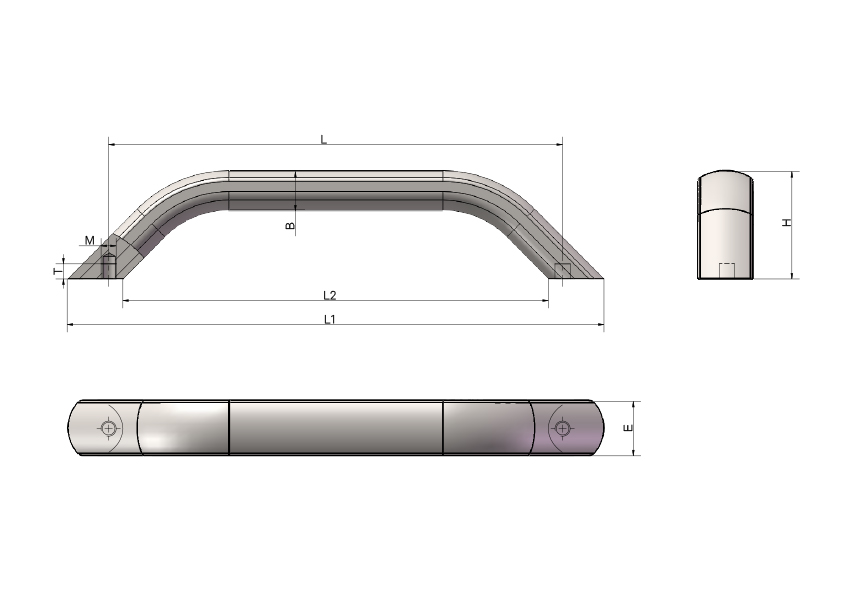

| model | material quality | Tube body | Weight (g) | Length L | L1 | E | M | T | B | 3D |
| L24-28-250-SR | aluminum alloy | silver white | 1 | 250 | 290 | 28 | m8 | 10 | 18 | Download |
| L24-36-250-BK | aluminum alloy | black | 1 | 250 | 290 | 28 | m8 | 10 | 18 | Download |
| L24-28-300-SR | aluminum alloy | silver white | 1 | 300 | 340 | 28 | m8 | 10 | 18 | Download |
| L24-28-300-BK | aluminum alloy | black | 1 | 300 | 340 | 28 | m8 | 10 | 18 | Download |
| L24-28-400-SR | aluminum alloy | silver white | 1 | 400 | 440 | 28 | m8 | 10 | 18 | Download |
| L24-28-400-BK | aluminum alloy | black | 1 | 400 | 440 | 28 | m8 | 10 | 18 | Download |
| L24-36-300-SR | aluminum alloy | silver white | 764.01 | 300 | 355 | 36 | m8 | 14 | 26 | Download |
| L24-36-300-BK | aluminum alloy | black | 764.06 | 300 | 355 | 36 | m8 | 14 | 26 | Download |
| L24-36-400-SR | aluminum alloy | silver white | 950.01 | 400 | 455 | 36 | m8 | 14 | 26 | Download |
| L24-36-400-BK | aluminum alloy | black | 1 | 400 | 455 | 36 | m8 | 14 | 26 | Download |
| L24-36-500-SR | aluminum alloy | silver white | 1130 | 500 | 555 | 36 | m8 | 14 | 26 | Download |
| L24-36-500-BK | aluminum alloy | black | 1024.07 | 500 | 555 | 36 | m8 | 14 | 26 | Download |
Installation: Installation screw with M8 support pin failed
Application: Can be used in relative position
The length of T can be provided according to customer needs.
1. Customized non-standard length 2 Optional screws 3. Ultrasonic cleaning and duty-free packaging 4. Laser engrafting logo
