Heavy Duty Adjustable Toggle Latch

4006

Heavy Duty Adjustable Toggle Latch

Zinc-plated / Polish

application:Vehicles, Medical equipment,Engineering machinery

catalogue CAD data

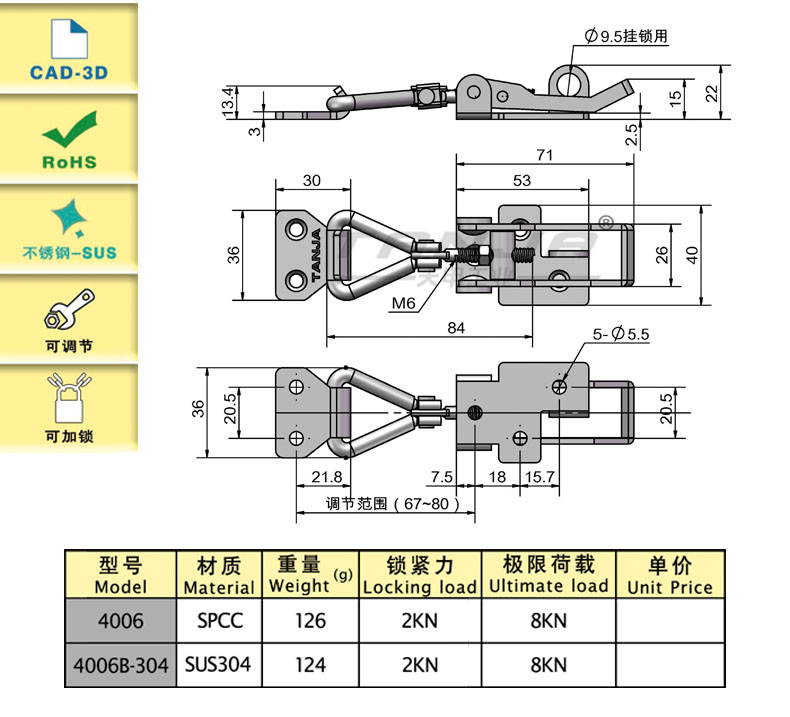

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
4006 Adjustable,Lockable 147.4 SPCC 126 2000 8000
4006B Adjustable,Lockable 147.3 SUS304 124 2000 8000
characteristic

Adjustable latch, locking force is adjustable, can be applied to cambered surface or angled cover for the movable spindle

Available services

With lockhole,padlock or lead seal is available.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
