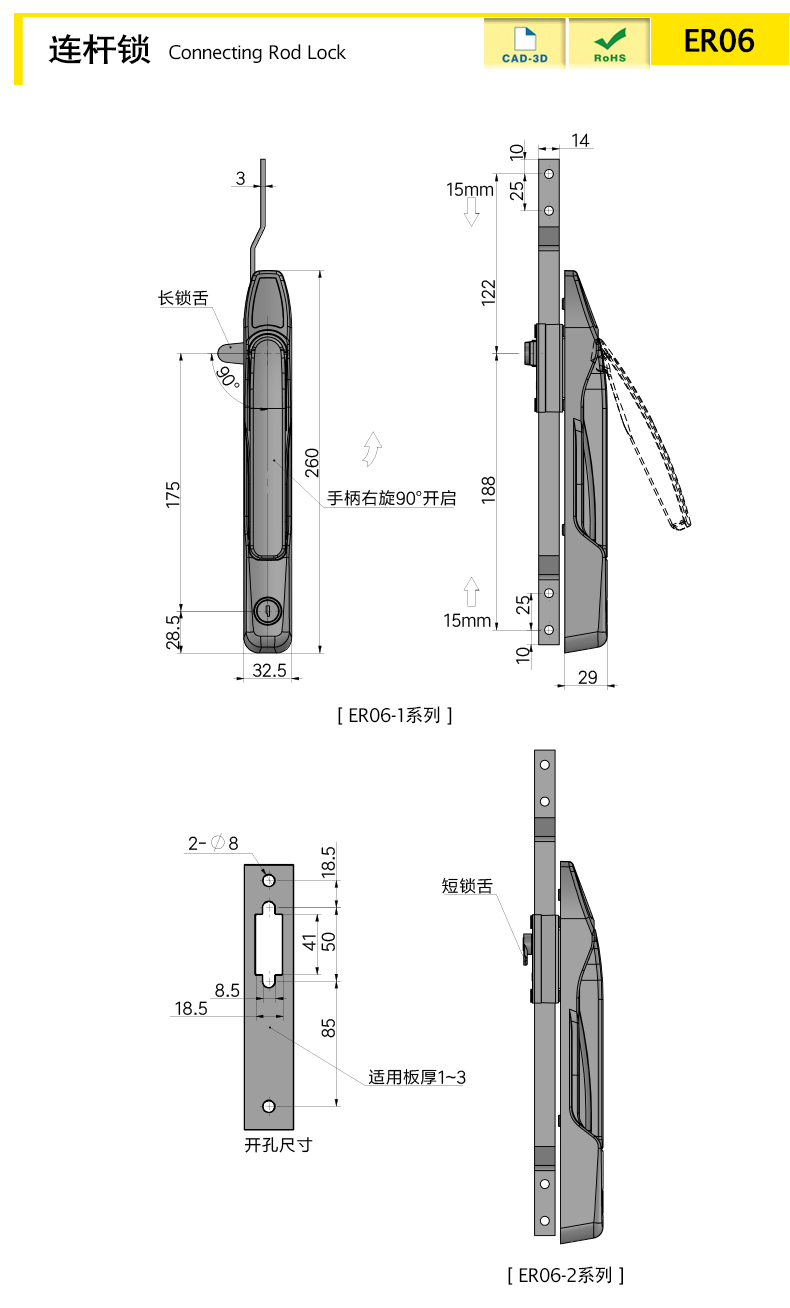

| model | function | material quality | Length (mm) | colour | With key | surface treatment | Weight (g) | 3D |
| ER06-1WH | connecting rod lock | kirsite | 260 | white | have | spray | 800 | Download |
| ER06-1BK | connecting rod lock | kirsite | 260 | black | have | spray | 804.51 | Download |
| ER06-2WH | connecting rod lock | kirsite | 260 | white | have | spray | 1 | Download |
| ER06-2BK | connecting rod lock | kirsite | 260 | black | have | spray | 793.66 | Download |
The lock body is made of zinc alloy cast in one piece, with a streamlined overall shape, smooth appearance, simple and elegant,
Environmentally friendly materials:
The lock body material is environmentally friendly 4 # zinc alloy, free of heavy metals, lead-free, cadmium free, and nickel free; Lightweight, high strength, corrosion-resistant, outstanding performance, and longer service life
Bounce unlocking: After unlocking with the key, press the lock head and the handle will pop up to quickly open it
Long and short lock tongue configuration, long lock tongue suitable for double door, short lock tongue suitable for single door, three-point lock with connecting rod, safe and firm, meeting various needs
