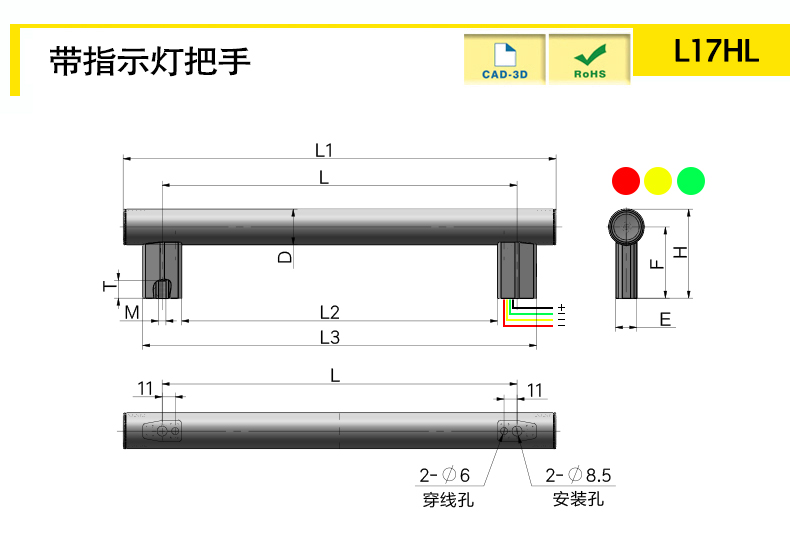

| model | material quality | Tube body | Supporting feet | Cover plate | Weight (g) | Length L | D | L1 | L2 | H | F | E | M | T | L3 | 3D |
| L17HL-D30-200-B | aluminum alloy | black | black | white | 1 | 200 | 30 | 265 | 167 | 75 | 60 | 18 | m8 | 15 | 233 | Download |
| L17HL-D30-200-B | aluminium alloy | black | black | white | 1 | 200 | 30 | 265 | 167 | 75 | 60 | 18 | m8 | 15 | 233 | Download |
| L17HL-D30-250-B | aluminum alloy | black | black | white | 1 | 250 | 30 | 315 | 217 | 75 | 60 | 18 | m8 | 15 | 283 | Download |
| L17HL-D30-250-B | aluminium alloy | black | black | white | 1 | 250 | 30 | 315 | 217 | 75 | 60 | 18 | m8 | 15 | 283 | Download |
| L17HL-D30-300-B | aluminum alloy | black | black | white | 1 | 300 | 30 | 365 | 267 | 75 | 60 | 18 | m8 | 15 | 333 | Download |
| L17HL-D30-300-B | aluminium alloy | black | black | white | 1 | 300 | 30 | 365 | 267 | 75 | 60 | 18 | m8 | 15 | 333 | Download |
| L17HL-D30-400-B | aluminum alloy | black | black | white | 1 | 400 | 30 | 465 | 367 | 75 | 60 | 18 | m8 | 15 | 433 | Download |
| L17HL-D30-400-B | aluminium alloy | black | black | white | 1 | 400 | 30 | 465 | 367 | 75 | 60 | 18 | m8 | 15 | 433 | Download |
| L17HL-D30-500-B | aluminum alloy | black | black | white | 1 | 500 | 30 | 565 | 467 | 75 | 60 | 18 | m8 | 15 | 533 | Download |
| L17HL-D30-500-B | aluminium alloy | black | black | white | 1 | 500 | 30 | 565 | 467 | 75 | 60 | 18 | m8 | 15 | 533 | Download |
| L17HL-D30-600-B | aluminum alloy | black | black | white | 1 | 600 | 30 | 665 | 567 | 75 | 60 | 18 | m8 | 15 | 633 | Download |
| L17HL-D30-600-B | aluminium alloy | black | black | white | 1 | 600 | 30 | 665 | 567 | 75 | 60 | 18 | m8 | 15 | 633 | Download |
Pipe handle:
Type B: Tube body - aluminum alloy, anodized, matte finish; Foot PA, matte finish
S-type: tube body - aluminum alloy, anodized, matte finish; Foot PA, matte finish
Pipe end cap:
Built in three color indicator lights (red, yellow, green)
Voltage: Red light: 2.0-2.4V/yellow light: 2.0-2.4V/green light: 3.0-3.4V
electric current: 600mA
Brightness: Red light: 100-110LM/Yellow: 140-160LM/Green Light: 90-100LM
Wavelength: Red light: 620-630nm/yellow light: 590-595nm/Green light: 520-525nm
Luminous angle: 120 degrees
service life: 50000H
Installation: Foot with threaded blind hole
handle
