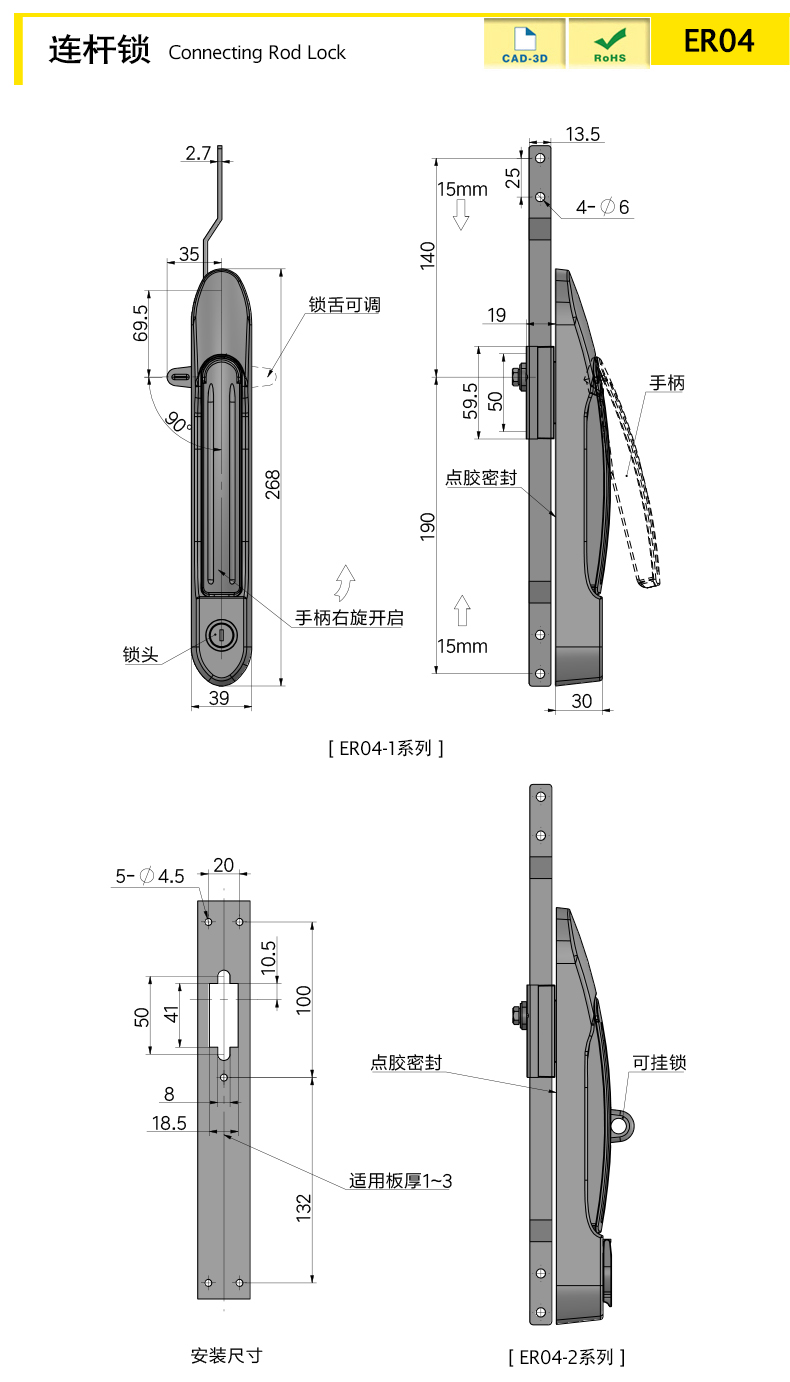

| model | function | material quality | Length (mm) | colour | With key | surface treatment | Weight (g) | 3D |
| ER04-1WH | connecting rod lock | kirsite | 268 | white | have | spray | 1 | Download |
| ER04-1BK | connecting rod lock | kirsite | 268 | black | have | spray | 1 | Download |
| ER04-2WH | connecting rod lock | kirsite | 268 | white | have | spray | 997.5 | Download |
| ER04-2BK | connecting rod lock | kirsite | 268 | black | have | spray | 1 | Download |
The lock body is made of zinc alloy cast in one piece, with a streamlined overall shape, smooth appearance, simple and elegant,
Environmentally friendly materials:
The lock body material is environmentally friendly 4 # zinc alloy, free of heavy metals, lead-free, cadmium free, and nickel free; Lightweight, high strength, corrosion-resistant, outstanding performance, and longer service life
Multiple seals:
Equipped with magnetic dust cover (ER04-2 series), automatic sealing; The lock body is equipped with adhesive sealing to effectively prevent foreign objects from entering, with a protection level of IP54, meeting various indoor and outdoor usage scenarios
Bounce unlocking: After unlocking with the key, press the lock head and the handle will pop up to quickly open it
Multiple closure methods: linkage three-point lock, can be equipped with padlock, safe and secure, meeting various needs
Left and right universal: adjust the fixed position of the lock plate to achieve left and right door opening
