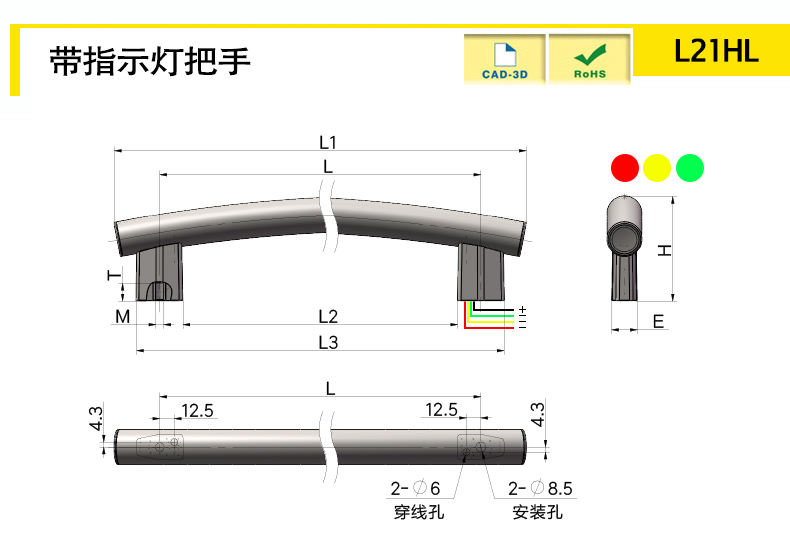

| model | material quality | Tube body | Supporting feet | Cover plate | Weight (g) | Length L | D | L1 | L2 | H | E | M | T | L3 | 3D |
| L21BHL-D30-400 | sus304 | silver white | black | white | 1 | 400 | 30 | 480 | 360 | 90 | 22 | m8 | 15 | 440 | Download |
| L21BHL-D30-400 | sus304 | silvery white | black | white | 1 | 400 | 30 | 480 | 360 | 90 | 22 | m8 | 15 | 440 | Download |
| L21BHL-D30-500 | sus304 | silver white | black | white | 1 | 500 | 30 | 580 | 460 | 90 | 22 | m8 | 15 | 540 | Download |
| L21BHL-D30-500 | sus304 | silvery white | black | white | 1 | 500 | 30 | 580 | 460 | 90 | 22 | m8 | 15 | 540 | Download |
| L21BHL-D30-600 | sus304 | silver white | black | white | 1 | 600 | 30 | 680 | 560 | 90 | 22 | m8 | 15 | 640 | Download |
| L21BHL-D30-600 | sus304 | silvery white | black | white | 1 | 600 | 30 | 680 | 560 | 90 | 22 | m8 | 15 | 640 | Download |
| L21HL-D30-400-BK | aluminum alloy | silver white | black | white | 1 | 400 | 30 | 480 | 360 | 90 | 22 | m8 | 15 | 440 | Download |
| L21HL-D30-400-BK | aluminium alloy | silvery white | black | white | 1 | 400 | 30 | 480 | 360 | 90 | 22 | m8 | 15 | 440 | Download |
| L21HL-D30-500-BK | aluminum alloy | silver white | black | white | 1 | 500 | 30 | 580 | 460 | 90 | 22 | m8 | 15 | 540 | Download |
| L21HL-D30-500-BK | aluminium alloy | silvery white | black | white | 1 | 500 | 30 | 580 | 460 | 90 | 22 | m8 | 15 | 540 | Download |
| L21HL-D30-600-BK | aluminum alloy | silver white | black | white | 1 | 600 | 30 | 680 | 560 | 90 | 22 | m8 | 15 | 640 | Download |
| L21HL-D30-600-BK | aluminium alloy | silvery white | black | white | 1 | 600 | 30 | 680 | 560 | 90 | 22 | m8 | 15 | 640 | Download |
Curved tubular handle, stylish
SR type: Tube body: Aluminum alloy, silver white, matte finish; Foot support: PA， Black, matte finish
BK type: Tube body: Aluminum alloy, black, matte finish; Foot support: PA， Black, matte finish
L21B： Stainless steel tube body, surface brushed treatment, black support legs, matte finish
Built in indicator light on the end cover, can be connected to the device
When operating the equipment, the indicator light on the equipment door handle can serve as a more intuitive warning
Pipe end cap:
Built in three color indicator lights (red, yellow, green)
Voltage: Red light: 2.0-2.4V/yellow light: 2.0-2.4V/green light: 3.0-3.4V
electric current: 600mA
Brightness: Red light: 100-110LM/Yellow: 140-160LM/Green Light: 90-100LM
Wavelength: Red light: 620-630nm/yellow light: 590-595nm/Green light: 520-525nm
service life: 50000H
Installation: Foot with threaded blind hole
